LM-PDS01 |
|

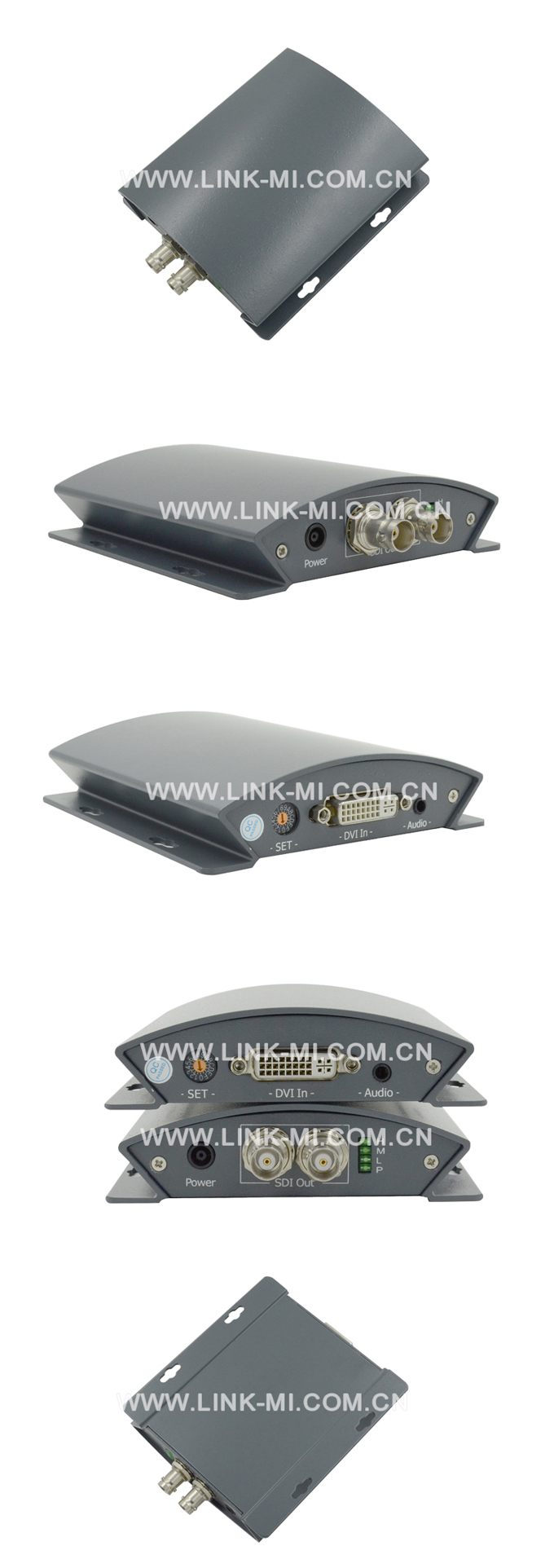

| LINK-MI LM-PDS01 Broadcast DVI to SD/HD/3G SDI Converter |
| |
Introduction:
1. VESA Standard DVI signal input2. Optional 3G / HD / SD SDI signal output3. Optional 1080P/1080I/720P/480I/576I/1080PSF output4. DVI input signal adaptively5. Support DVI external analog stereo audio signal embedded in the SDI signal6. SDI output can be setting as frequency-conversion7. SDI output can be setting as fixed frequency8.Special features can be customized |
|
|
| |
|
|
|
|
Specification
|
Name |
HD Video DVI to BNC SDI Converter |
|
Model No. |
LM-PDS01 |
|

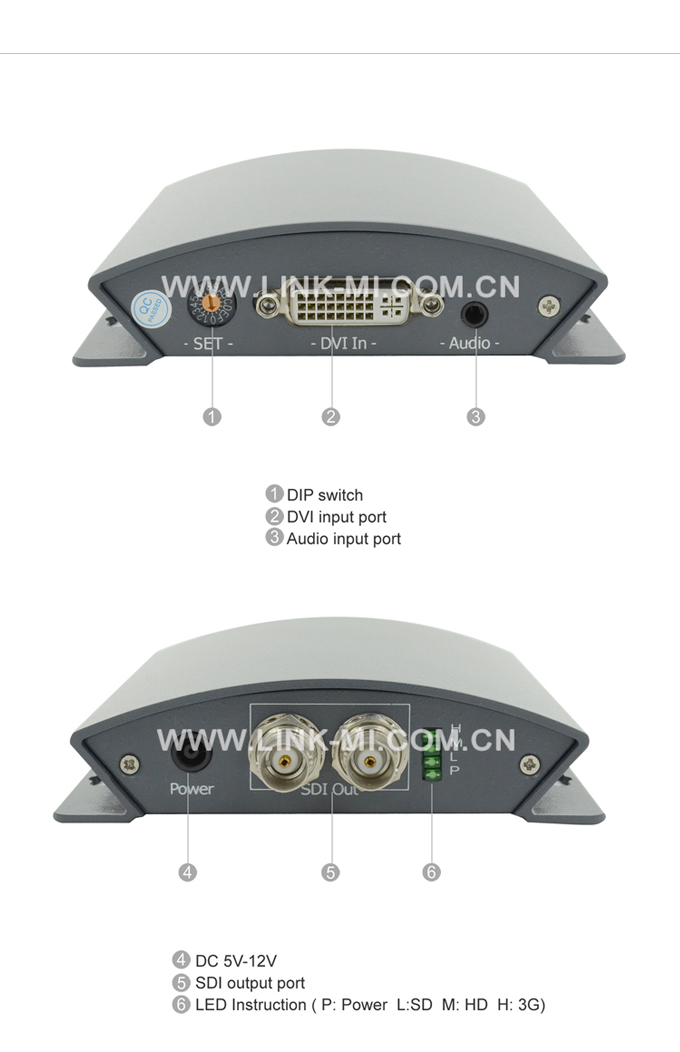

DVI Input |
Signal |
VESA Standard DVI signal |
|
Connector |
DVI-I |
|
Signal Amplitude |
800mV ±10% ( 75 R) |
|
Impedance |
100Ω |
|
Analog Audio Input |
Input Signal |
Analog Stereo Audio |
|
Digital Sampling |
48K |
|
Impedance |
16Ω |
|
Connector |
Earphones |
|
SDI Output |
Output Signal |
3G/HD/SD SDI Signal |
|
SMPTE |
270Mbps~2.97Gbps |
|
Impedance |
75Ω |
|
Signal Amplitude |
800mV ±10% |
|
Connector |
BNC (IEC169-8 Standard) |
|
General Parameters |
Power Supply |
DC 5-12V |
|
Power Consumption |
<2W |
|
Dimension(L*W*H) |
141*102*30 mm |
|

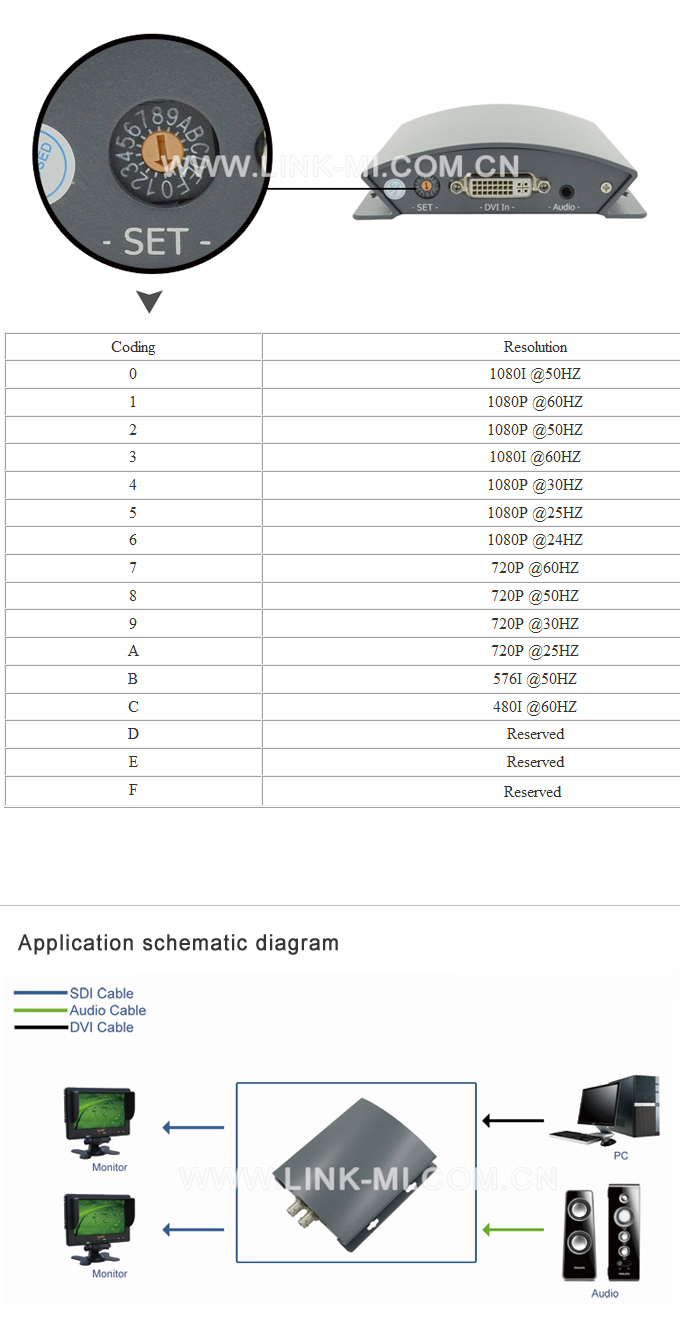

Control |
DIP Switch |
|
Net Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃ |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH | Packing Contents
1. Main Unit. 1pcs Broadcast DVI to SD/HD/3G SDI Converter
2. 1pcs DC 5V Power Adapter
3. 1pcs User Manual |
 |
|
|
|
|
